T Flip Flop

Scrap Mechanic810 views22 favorites1 min readby AcidnineView on Steam ↗

T-FlipFlop Setup

Every added button/sensor will require a dedicated timer.

Layout (2 NOR for toggle and 3 XOR to hold the state)

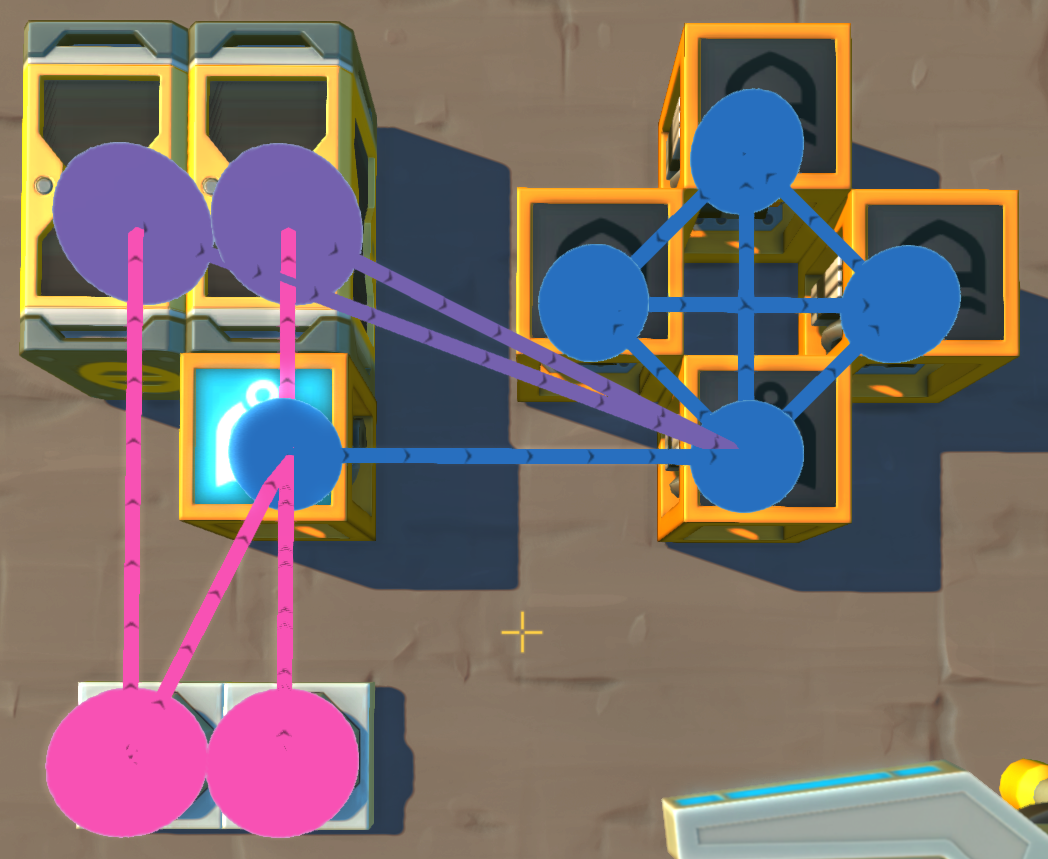

Timers are set to 1 tick. Wiring

A sensor can also be hooked up in button mode to the first NOR (the one the buttons are connected to) along with a 1 tick timer which will allow an automatic door opener/closer.
